A number of comments to my previous post on the role of aquaculture as a milestone in the history of humanity have clearly identified one of the key problems for the growth of aquaculture: that some of marine aquaculture today can hardly be considered sustainable, particularly where the production targets predatory fish high-up in the food web.
Indeed, in an assessment of the bottlenecks to progress towards a sustainable aquaculture, my coworkers and I identified the high trophic level at which aquaculture is exploited as a major driver of the environmental impact of aquaculture (Duarte et al. 2009).
A comparison between the way we exploit marine and terrestrial food webs can illustrate the problem. The efficiency in the transference of organic matter up the food webs is typically below 10% (i.e. an organism grows in weight by less than 100 g for each kg of food ingested) (note 1). This means that production is dissipated as it moves up in the food web, so for every ton of plant production introduced in the food web, we can harvest up to 100 Kg of herbivores, 10 Kg of carnivores feeding on herbivores, and so on. On land, we eat largely plants and herbivores, with a few omnivores and very few carnivores (e.g. dogs in some Asian countries). Accordingly, the mean food production on land has a mean weighted trophic level of 1.008, where 1 is a plant, 2 is a herbivore, etc.
In contrast, we eat many large predatory fish, such as tuna or sharks, that sit high up in the marine food web, which has many more steps than the terrestrial food web does. For instance, tuna has a trophic level of about 5 (i.e. four other steps in between plankton production and tuna), which is unparalleled in terrestrial food webs, equivalent to imaginary monsters eating wolf-eaters (Duarte et al. 2009).
This means that the production of 1 Kg of tuna (trophic level 5) requires about 100,000 kg of plankton production, which is equivalent to the annual primary production of 5 hectares of ocean surface. If we, however, consume 1 kg of small pelagic fish, such as anchovies (trophic level 3), we are effectively harvesting the annual production of an ocean surface 100 fold smaller.
Hence, the production of predatory fish high up in the food web requires the appropriation of massive amounts of ocean production, typically as fish converted in flour and oil for fish feed production.
Yet, aquaculture, as practiced today produces food at a lower trophic level (1.84) compared to that of fisheries (trophic level 3.2, Duarte et al. 2009), indicating that, for a given unit production, aquaculture co-opts 50 times less ocean production than fisheries.
Understanding the efficiency of food webs, and introducing food web concepts in planning aquaculture production and human diets is important. For instance, a food web can use any given primary production far more effectively than a single species can. Accordingly, polycultures, where different species are cultured jointly composing a small food web rather than in isolation, can increase the yield of aquaculture by 30 %, for a give use of feed, while reducing environmental impacts (Duarte et al. 2009). For instance, polycultures combine fish cultures with a belt of filter-feeders, such as mussels or oysters, that filter out the excess particles in the water, and an outer belt of algae that strip the nutrients (nitrogen and phosphorus) released by excretory and decomposition processes out of the water. Cages with bottom detritivores can also remove excess feed and feces reaching the sea floor and turn them into valuable production.
However, the ultimate solution to the sustainability of aquaculture relies in the mass production of macroalgae and filter-feeding and herbivore organisms, bringing the trophic level of production down to levels comparable to those of food production on land. This shift will also allow aquaculture to close their production cycle, producing, in the farm, the fish feed required, thereby releasing aquaculture from its present dependence of wild fisheries catches.

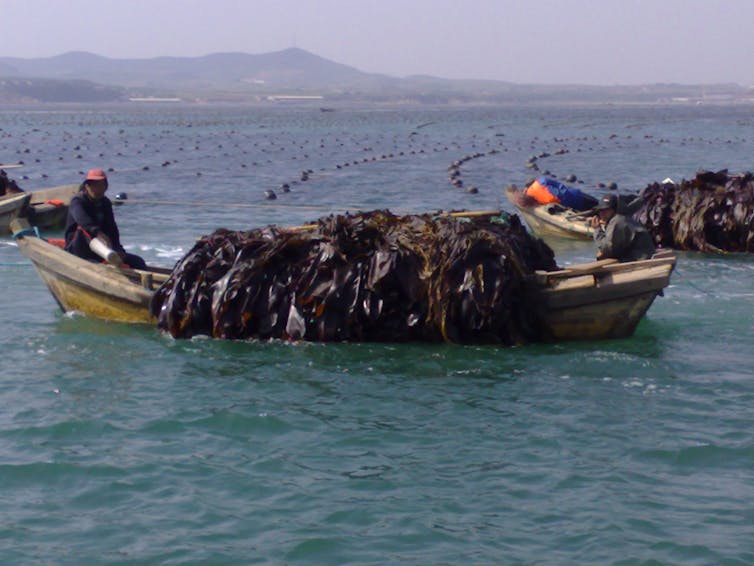

In doing so, aquaculture can shift from being a source of (comparatively minor) problems to being a positive force in the marine environment. Large scale production of macroalgae, such as those already existing in China and Korea, can help rehabilitate degraded coastal waters by stripping excess nutrients from the water, injecting photosynthetic oxygen into hypoxic waters, and providing habitat to increase biodiversity. Much of that production can be used to produce biofuels, free of the problems (competition with crops for water and fertile land) that affect biofuel production on land, thereby helping mitigate climate change (Duarte et al. 2009).
The capacity to control the life cycles of marine organisms can also be instrumental as a tool in conservation biology, where populations of endangered marine organisms can be subsidized by the release – with proper consideration to avoid genetic dilution – of organisms grown in culture, catalyzing the recovery of endangered wild populations. This use would be comparable to successful breeding programs on endangered terrestrial birds and mammals, such as the Tasmanian devil. Indeed, the Pacific Salmon fishery off Alaska is already subsidized by the release of fry from aquaculture.
As evidenced by some comments to my earlier post, the perception that aquaculture is detrimental to the environment is widespread. Whereas impacts do exist in many operations, these do not fully justify the negative perceptions and biases the public often has against aquaculture.
For instance, experiments in Scotland have shown that when wild and aquaculture salmon are offered to the public, with each labelled both wild and aquaculture, a significant fraction of the test subjects consider the wild salmon to be superior in taste to the aquaculture one. However, this is the same fraction of respondents for the wild salmon labelled as “wild” and the aquaculture salmon also labelled as “wild” (Holmer et al. 200x). This clearly illustrates societal biases against agriculture that need be addressed.
In fact, I became first involved with aquaculture through research on its environmental impacts in Europe, across the Mediterranean and in SE Asia (The Philippines, Vietnam and Thailand). As I learned more about aquaculture and its impacts I realized that the impacts were relatively small and easily addressed, and that the approach taken to the assessment of the impacts of aquaculture are intrinsically unfair.
Provided we agree (and I hope we do!) that we ought to produce food to feed humans, then the relevant question is not only what is the environmental value of a pristine coastal area vs. one supporting aquaculture – the approach typically used in evaluation the impacts of aquaculture – but what is the environmental cost of producing food on land and at sea. I submit that this comparison clearly indicates that aquaculture is a relatively benign form of food production, in terms of its environmental impacts as well as risks to human health, than food production on land.
Many past pests with catastrophic consequences on human populations and contemporary risks to human health (mad cow disease, avian flue, porcine flue, etc.) derive from the fact that the animals we grow on land and evolutionary close to humans, so that pathogens and parasites may jump from them onto humans (Duarte et al. 2007). In contrast, marine organisms and, with the exception of mammals, too distant in evolution for their pathogens to easily jump across to humans. The conversion of wild ecosystems onto cropland and pastures is still responsible for much of deforestation, mass application of agricultural fertilizers have deteriorated aquatic ecosystems, both marine and inland, globally and contributed to climate change, and many hazardous persistent organic pollutants have been introduced to protect crops from insect pests and weeds. Yet, we have come to accept that about two thirds of our landscape be used for food production on land, while many people are appalled if they see an aquaculture form protruding far into the horizon.
The solutions to sustainable aquaculture are relatively simple, but will sustainable aquaculture be economically feasible? Can the changes I recommend above be implemented while still delivering benefits? Is this an industry for poor nations, with low labour costs, only or can aquaculture be a successful source of food, jobs, and still deliver benefits to the environment of developed countries with high labour costs such as Australia?
I invite you to offer your views on these questions, and – after listening – I will provide mine in my next post.
Note 1: Fortunately our own growth efficiency is well below this! Try calculating your own growth efficiency to figure out what would happen if your body weight was to increase by 10% of all the weight of the food you ingest in a year… Scary!
References
Duarte, C.M., N. Marbà, and M. Holmer. 2007. Rapid Domestication of Marine Species. Science 316: 382-383.
Duarte, C.M., M. Holmer, Y. Olsen, D. Soto, N. Marbà, J. Guiu, K. Black and I. Karakassis. 2009. Will the Oceans Help Feed Humanity? BioScience 59: 967–976.
Holmer, M., Black, K., C.M. Duarte, Marbà, N., Karakassis, I. (Eds.) 2008. Aquaculture in the Ecosystem. X, 326 p., Springer Netherlands.
Michael Shand
Michael Shand is a Friend of The Conversation.
Software Tester
I still dont understand the concept, are we growing algae to feed fish to feed bigger fish which we will then eat? why dont we eat the algae? or grow seaweed and eat that? By the sounds of it we will end up with the same problems as we have with land farming, which is to produce a meal using meat takes many times more energy than it does to make the equivilant meal out of vegies. Have you heard of Perma-culture?
Gil Hardwick
Anthropologist
Michael, from your inane comment you do not understand Permaculture yourself, which Carlos' view in fact closely resembles.
Back here in the real world humans do in fact eat algae and seaweed, as well as fish. Likewise we eat grain and vegetables as well as meat.
Your error, like most dissociated urban dwellers who have nothing to do with either the harvesting of food or with the dynamics of ecosystems out here in the landscape, lies in your alienation from the process. If I'm wrong there…
Read moreJohn Nicol
logged in via Facebook
This is an excellent article with definitive numbers to substanitate what has been said. It is of wide interest to allo of us and I look forward to future posts by this author.
It is a relief also to find such an informative commentry which is not just the common list of opinions which seems to have become such a feature of most of the articles now appearing on the conversation.
The inclusion of some challenges to readers at the end, is also very welcome as it indicates that the author is…
Read morePatrick Anderson
logged in via Facebook
“This means that the production of 1 Kg of tuna (trophic level 5) requires about 100,000 tons of plankton production, which is equivalent to the annual primary production of 5 hectares of ocean surface.”
I can’t believe these numbers; put into a common unit, you are saying that 1 Kg of tuna requires 100 million Kg of plankton production? And the annual primary production of 5 hectares of ocean is 100 million Kg of plankton? That’s 2,000 Kg (2 tons) of plankton per square meter! This surpasses the most productive ecosystems in the world be several orders of magnitude.
For Tuna at trophic level 5, surely the equation is 1 Kg x 10 x 10 x 10 x 10 = 10,000 Kg plankton. Still an astoundingly large number but please, Carlos, check your figures.
Carlos Duarte
Director, Oceans Institute at University of Western Australia
Hi Patrick, Indeed, there was a typo in my post, the sentence "This means that the production of 1 Kg of tuna (trophic level 5) requires about 100,000 tons of plankton production" should read "100,000 kg", not tons, of plankton production. This represents about 5 g/m2/day, but note that this corresponds to wet weight, so the equivalent C production - the units most commonly used to report plankton production - is about 0.3 g C m2/day. The "accepted" net primary production of the ocean is about 45 Pg C/year, for a surface of about 320 million Km2, equivalent to about 0.38 g C m2/day.
Thank you for spotting the typo, which I have now corrected.
Patrick Anderson
logged in via Facebook
Thanks for fixing the typo Carlo. I hope you can help me to understand the trophic levels to Tuna.
level one is phyto plankton.
level two (zooplankton) eats ten kilos of plankton to make 1 kilo of biomass.
level three, little fish, eat ten kilos of zooplankton to make one kilo of fish, ie now we are at 100 Kg of phytoplankton for one Kg fish.
level four, bigger fish, eat ten kilos of small fish to make one kilo of small fish, based on 1,000 Kg of phytoplankon.
level five, Tuna, eat the bigger fish, making one kilo of tuna based on 10,000 Kg of plant matter.
How do you get 100,000 Kg plankton per 1 Kg Tuna?
Patrick Anderson
logged in via Facebook
Dear Carlos, I would still be interested in your reply to my question above on trophic levels. Cheers, Patrick
Carlos Duarte
Director, Oceans Institute at University of Western Australia
Hi Patrick, Sorry for the delay in replying... your calculations are correct. However, I adjusted for a low trophic efficiency from phytoplankton production up to zooplankton in the oligotrophic ocean - due to dissipation of production through the so-called microbial loop prevalent in the open ocean. This, effectively reduces the trophic efficiency from phytoplankton to zooplankton down to 1 % (rather than the conventional 10%), with a decrease in tuna production. Indeed, the trophic efficiency of the open ocean is under dispute, and - as an outcome of the Malaspina Expedition which I lead, we are seeing a very different trophic efficiency for vertical migrators (mictophids or lateen fish), with very high trophic efficiency of about 20%, compared to horizontal "cruisers" such as tuna, with a much lower trophic efficiency. We are, in fact, about to submit a paper on this topic.
Michael Croft
logged in via LinkedIn
Carlos, it would seem that the relatively new concept/system of aquaponics (AP) could be applied to marine aquaculture. This would go some way to creating loops in the trophic energy flows, rather having aquaculture as a linear input output system.
In essence fresh water land based aquaponics is a fusion of aquaculture and hydroponics. The fish generate nutrient dense water that becomes toxic if simply recirculated. Using bacteria and edible plants as biofilters the water is 'cleaned' and returned…
Read moreJody Plecas
Education Officer, AUSMEPA
Thanks very much for this summary. At Kangaroo Island in South Australia a new tuna farm (swim with the tuna) is being proposed and the community is concerned. Issues have been raised and responded. For instance 'feed' was going to be sourced locally limiting the risk of exotics. Although I haven't been privy to the whole discussion however it appeared to me that what seemed to be missing was the point to be made around the impact created by the volume of food needed to feed this high tropic fish and the potential by-catch. I have forwarded your link to some of the marine enthusiasts in South Australia to provide, I hope, for some additional perspective. Thank you for having exactly what I needed.
Jody Plecas
Education Officer, AUSMEPA
One more thing. I would like to use the chart you have here on my AUSMEPA facebook page for marine education. Who would I need to ask permission? Thanks.
