Infographic: how fast is the NBN?

Infographic: how fast is the NBN?

There has been a lot of talk about the National Broadband Network (NBN) in its various guises under the Labor and now Liberal governments.

But how fast really is it in its current form? How does it compare to today’s ADSL and broadband internationally? And, crucially, how long will it take to download an episode of Parks and Recreation? You’ll find the answers here.

Broadband before the NBN

ADSL2+ is the most common broadband technology used in Australia today. ADSL2+ speeds depend on the distance from the premises to the local telephone exchange.

This is because imperfections in the copper wires connecting the premises to the exchange can degrade the signal. So the longer the wire, the lower the speed.

A typical ADSL2+ download speed in Melbourne or Sydney is around 15 Mb/s, but many housholds have much lower speeds than this.


International comparison

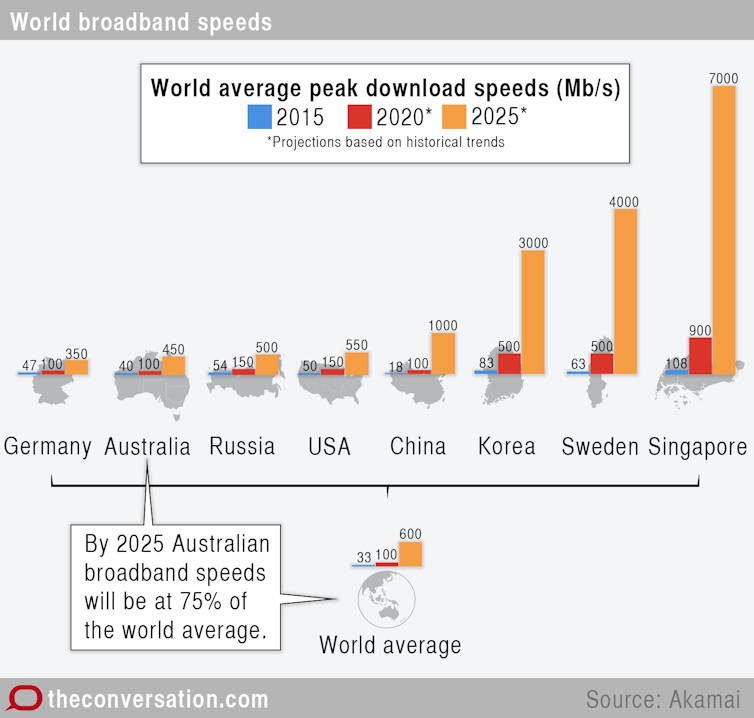

This chart shows the average peak download speeds (an indication of the upper range of speeds) reported by Akamai for a number of countries in 2015, when Australia’s download speeds were ranked 49th in the world.

The graph also shows projected download speeds in those countries in 2020 and 2025, based on continuing exponential growth of download speeds.


Speed comparison

The wired part of the NBN will have three components:

  • Fibre-to-the-node (FTTN)
  • Fibre to the premises (FTTP) and
  • Hybrid fibre coax (HFC) networks, which are upgraded version of the existing Telstra and Optus services.

FTTN will provide download speeds of 50 Mb/s to 100 Mb/s, and like ASDL, the speed will depend on the distance between the premises and the nearest node in the street. It will not be possible to upgrade FTTN services to higher speeds.

Premises connected to the FTTP and HFC networks will be able to download at at least 100 Mb/s, upgradeable to 1,000 Mb/s (i.e. 1 gigabit per second or Gb/s) and even 10,000 Mb/s (i.e. 10 Gb/s) in the future.

This animation gives an idea of the different download speeds of ADSL, FTTN, and FTTP in 2016, 2021 and 2026, based on expected technology improvements.

Bandwidth capacity

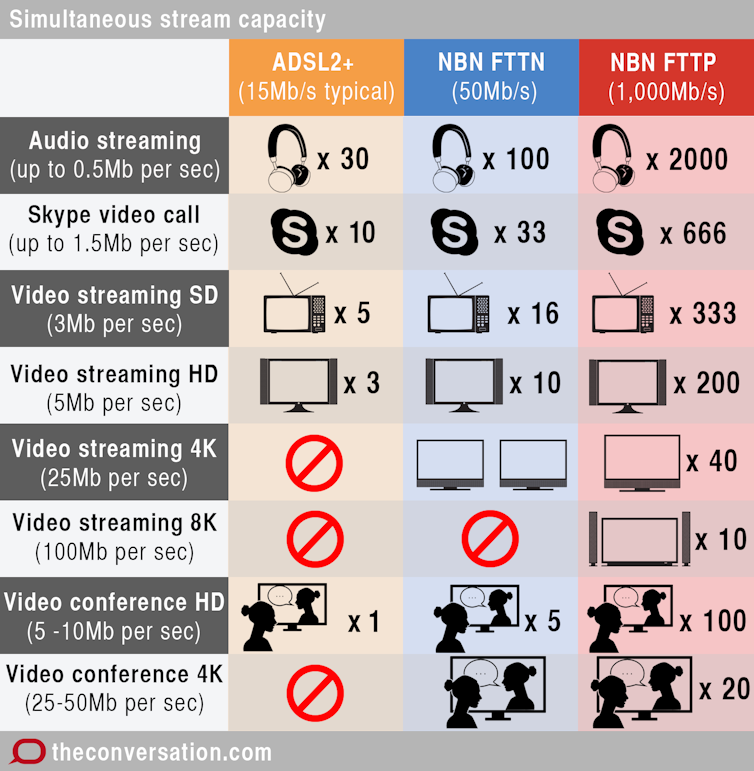

The speed of a broadband connection is not just about download speeds, but also the capacity for multiple streams through a single connection.

For example, a typical ADSL2+ connection could handle up to three high-definition (HD, or 1,920 × 1,080) video streams simultaneously.


Faster connection will be able to handle more simultaneous streams and at higher resolutions.


What your future household will require

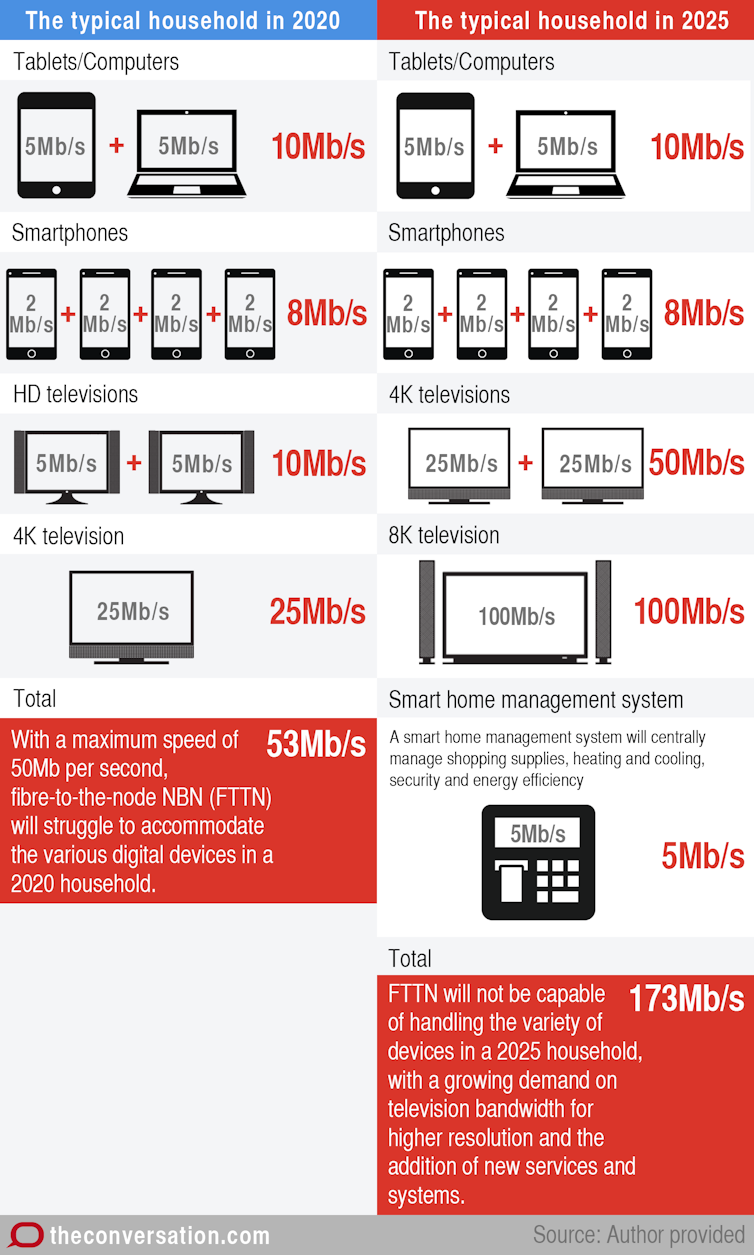

This graphic shows the download requirements of a typical household in 2020 and 2025.

By then, 4K ultra-high-definition (3,840 x 2,160) video streaming will be common, and 4K TVs will be readily available. By 2020, a typical Australian home will have two of these devices.

In 2025, 8K (7,680 x 4,320) TVs will be readily available and there could well be an 8k TV in every home as well as two or three 4k TVs.
