The body’s fight against COVID-19 explained using 3D-printed models

Editor’s note: In this interview, Nathan Ahlgren, assistant professor of biology at Clark University, uses 3D-printed models to explain what proteins do in viruses, how they interact with human cells, how the vaccine delivers mRNA into the cell, and how antibodies protect us. This follows an earlier article in which he explained what proteins are and the wide range of functions they have in the body.

Nathan Ahlgren explains what role proteins play in a virus and how the spike protein works.

What do proteins do in a virus? What else is in a virus?

All of life has proteins. So human cells have proteins, and the same is true for viruses, even though they’re very different from the cells in our body. A virus is made up of two main things – a protein shell and genetic material.

Ahlgren holds up a model of a human papillomavirus. The model is shaped like a soccer ball. The ball has removable segments, which represent groups of proteins. Inside the hollow ball is a red string, which represents the RNA.
A 3D-printed model of the human papillomavirus showing the protein shell and genetic material inside. The Conversation, CC BY-ND

The image above shows a 3D-printed model I made of proteins from the human papillomavirus. Each one of the colored pieces is made up of five copies of a single protein, and together they make an icosahedral shell. Inside, I’ve represented the genetic material here as a red strand. And that’s essentially what a virus’s structure is made up of. In this case, the proteins’ function is to make a protective shell around the virus. Some viruses, including SARS-CoV2, also have a plasma membrane or lipid membrane around them.

What is the function of the spike protein?

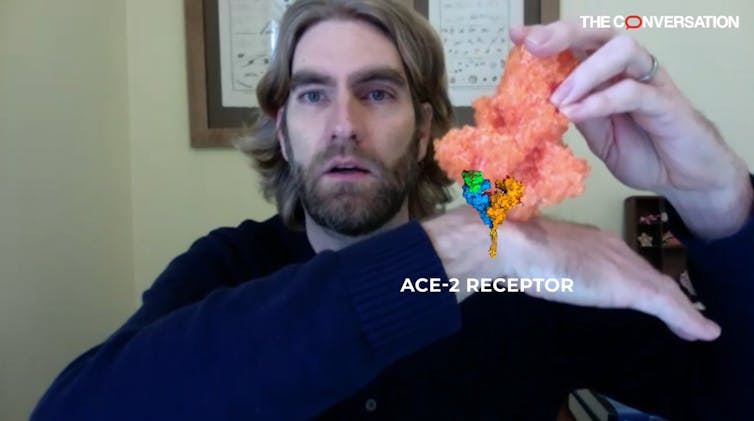

The scholar uses a 3D printed model of a spike protein and to explain how it targets the ACE-2 receptor. An artist has added  a digital illustration of the ACE-2 receptor on his hand to illustrate the process clearly.
The spike protein’s shape and composition allow it to attach itself to an ACE-2 receptor (also a protein) on a human cell. The Conversation, CC BY-ND

The spike protein has two functions - recognizing and attaching to the cell, and then allowing the virus’s genetic material to get into the cell by fusing with the cell membrane. The tip of the spike protein is going to recognize another protein that’s on a human cell’s surface. So if my arm in the image above is the cell surface, it’s going to connect to a protein there. The protein that it recognizes in human cells is called ACE-2. Once it recognizes an ACE-2 protein, there’s a complicated process in which the spike protein actually unfolds a long, thin structure to stick into the plasma membrane of the cell and fuse the plasma membranes of the virus and the cell.

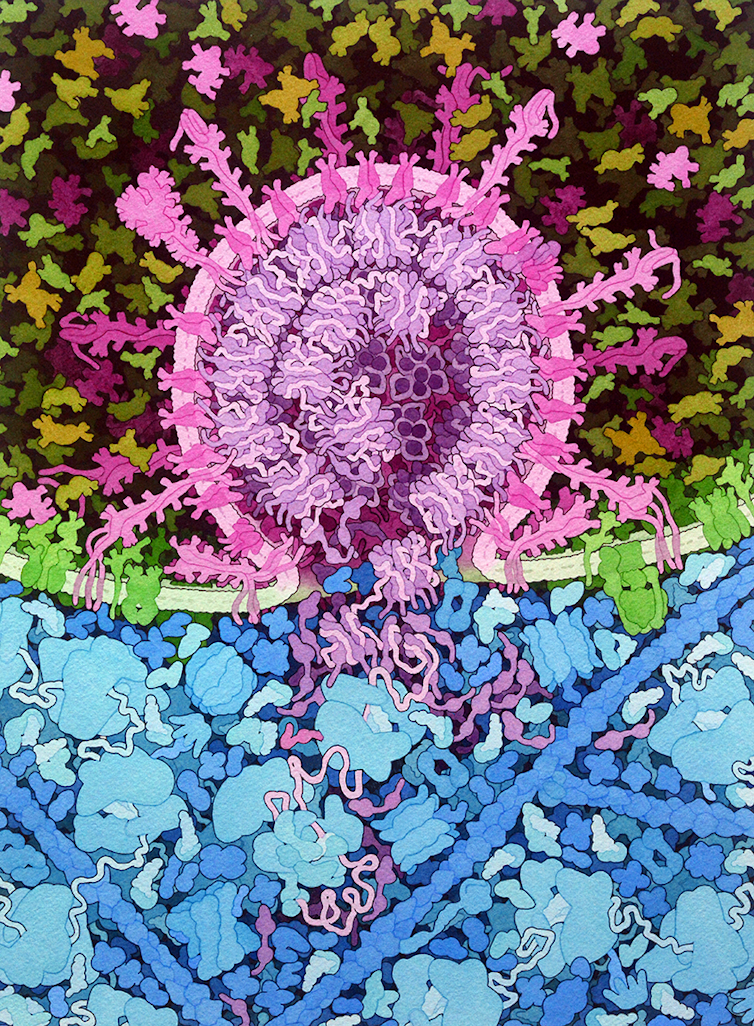

An illustration shows a rupture in the cell membrane made by the spike protein and a long twisted strand of RNA entering the cell cytoplasm
An illustration shows the fusion of the SARS CoV-2 virus to the cell, releasing the viral RNA genome into the cell cytoplasm. David Godsell/The Protein Database, CC BY-SA

It all has to do with the shapes, chemical composition and the charge of the atoms on the spike protein and the ACE-2 protein. Each of the little bumps on the model represents an individual atom. The surface of the spike protein is going to recognize the ACE-2 protein, like a puzzle piece that fits just right, or a lock and key.

How do mRNA vaccines interfere in this process?

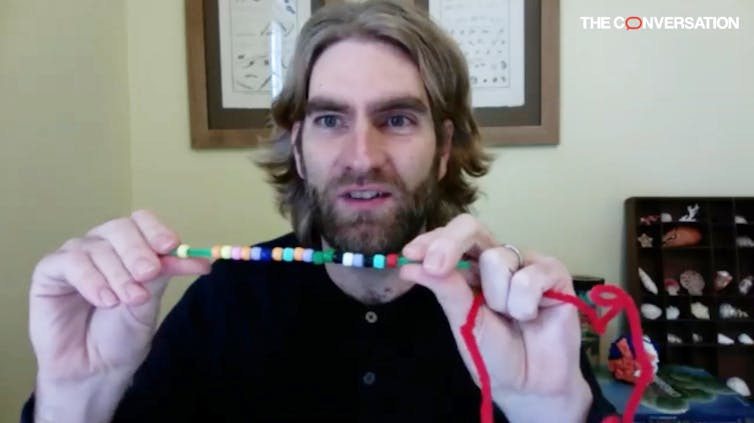

The mRNA for the spike protein, shown as the red strand, contains instructions for the formation of the spike protein. The colored beads of the bracelet represent the individual amino acids that make up the spike protein, which fold up into a spike
The mRNA for the spike protein, shown as the red strand, contains instructions for the formation of the spike protein. The colored beads of the bracelet represent the individual amino acids that make up the spike protein, which fold up into the shape of the spike. The Conversation, CC BY-ND

mRNA is genetic material that has instructions or information to make proteins. The mRNA for the spike protein, shown as the red strand in the photo above, contains instructions for making the spike protein. The colored beads of the bracelet and the order in which they’re placed represent the individual amino acids that make up the spike protein, which fold up into the shape of the spike.

The vaccines take the mRNA sequence for the spike protein, put it in a special package and deliver that into your human cells. Now your cells have the instructions to make the spike protein, so they’re going to make some. That protein is going to end up on the surface of your cell. That’s when the immune system takes action. Your body detects this protein, recognizes that it is foreign to the body and tries to seek out and destroy that protein.

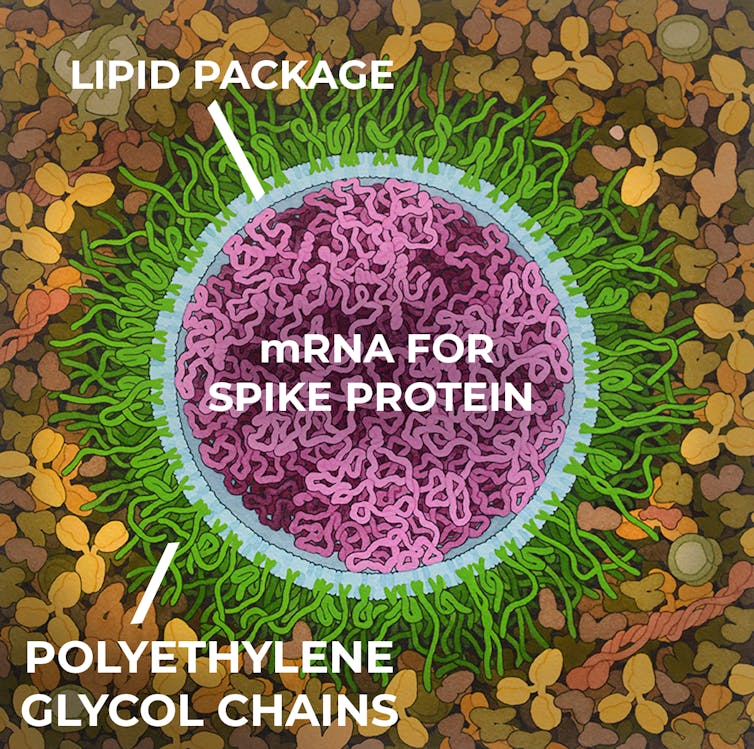

The vaccine delivers mRNA for the spike protein wrapped in a lipid package, along with polyethylene glycol chain strands. The PEG strands protect the package and increase its durability so it can reach the cell safely.
The vaccine delivers mRNA for the spike protein wrapped in a lipid package, along with polyethylene glycol chain strands. The PEG strands protect the package and increase its durability so it can reach the cell safely. The Conversation, David Goodsell/The Protein Database, CC BY-ND

They way the vaccines get mRNA into the cell is in some ways similar to the way the viruses do it. It’s a simple package with genetic material inside.

What do antibodies do?

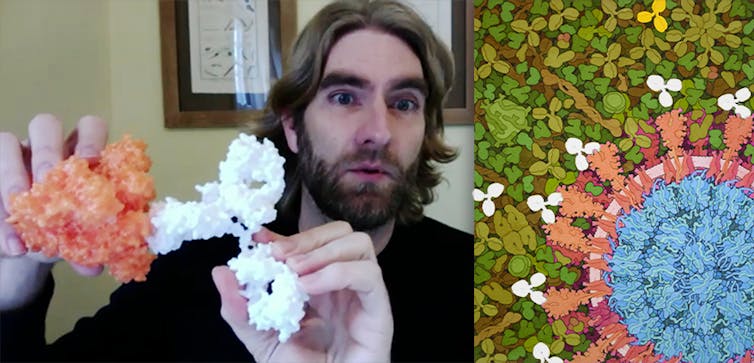

The scholar shows how antobodies, which are Y-shaped, block the spike protein.
Antibodies (white) block the spike protein of the SARS CoV-2 virus so it cannot enter the cell. The Conversation, David Goodsell/The Protein Database, CC BY-ND

Antibodies are another kind of protein. They take a Y-like shape, and their job is to recognize such intruders as bacteria and viruses in your body.

How do they do that? The tips of the Y are slightly different from antibody to antibody. Your body makes billions of different antibodies, which mostly differ at the tips. The tip’s shape, the molecular composition and charge has to be exactly right to fit on the end of the spike protein and block it. Once the tip of the spike protein is blocked, then it cannot fit into the ACE-2 receptor anymore. So this is what is called a “neutralizing antibody.”

The other thing antibodies can do is, once they’re attached to the spike protein, they can act like a flag. And then other immune cells can recognize that flag and say “OK, I gotta go eat this thing. This is a thing that’s bad for the body.”

Once our body has the instructions to make the spike protein, it is able to do a really good job of building up antibodies to block the spike proteins.

How do all these proteins find their targets?

They are all kind of floating around and bumping into each other, which is maybe a little concerning, that the fate of our health depends on these molecules floating around and finding each other. But you’ve got a lot of antibodies, and if you’re infected with a lot of viruses, they’ll float around and meet just the right surface and get attached to their target.
