Stormwater innovations mean cities don’t just flush rainwater down the drain

Rainwater + hard urban surfaces = lots of runoff. KOMUnews, CC BY

This article is part of The Conversation’s series on drought. You can read the rest of the series here.

More than half the world’s population lives in metropolitan centers. The built environment of a city is very different from that of rural and natural areas. When it rains over a rural landscape, much of the rainwater sinks into the ground or is evaporated or transpirated by trees, crops and other plants.

Transpiration is the biological process in which plants pull moisture out of the soil by their roots and release water vapor to the atmosphere through small openings in their leaves. Every day, plants release large quantities of water vapor. Growing plants can transpire up to 10 times as much water as they hold in their stems and leaves. These slow, natural processes allow precipitation to replenish groundwater and sustain vegetation, leaving only a small amount of water as overland flow or runoff.


In urban areas, though, when it rains, it pours! City streets, rooftops and parking lots make for hard surfaces that convert huge amounts of rainwater directly into runoff. In a typical city block, stormwater is collected by drains and catchbasins which then convey it underground through sewers. Finally, it’s discharged to a natural water system such as a creek, river or lake. Often stormwater is released without any pollution management. That’s a problem, since as water runs over urban surfaces, it picks up bacteria, heavy metals, nutrients and particulates.

Many urban areas can’t handle big storms, and runoff is discharged, untreated, into waterways. kenji ross, CC BY

In cities, the source of water that replenishes our aquifers is completely altered. Under natural conditions, aquifers are sustained through the infiltration of clean rainwater and streamwater into the ground. But for urban environments, these sources are cut off by the impervious landscapes. Instead, water from leaky sewers, water mains, septic tanks and landscape irrigation becomes the source for groundwater recharge. Since many of these sources are wastewater, they’re poor-quality sources and can lead to groundwater contamination.

Recent innovations in how to deal with urban stormwater are working to prevent runoff near its source and to provide pollution prevention and quantity control.

Imitating nature to solve an urban problem

Low Impact Development (LID) is a planning and design approach that aims to mimic naturalized water balances. It combines infiltration, evaporation and transpiration while limiting runoff. The goal of LID is to restore processes that are lost in a built-up urban environment. LID includes several types of low-level new and innovative stormwater technologies that together let water infiltrate the ground and evapotranspire into the air.

Green or living infrastructure features heavily in the LID approach. Green roofs are vegetated roof systems that combine plants, engineered growing media, drainage layers and traditional waterproof roof membranes. They can look like rooftop gardens. Bioretention and rain gardens are other vegetated systems, these on ground level, that allow stormwater to soak directly into the earth. These living systems restore evapotranspiration and clean stormwater by filtering it as it flows through the engineered soils.

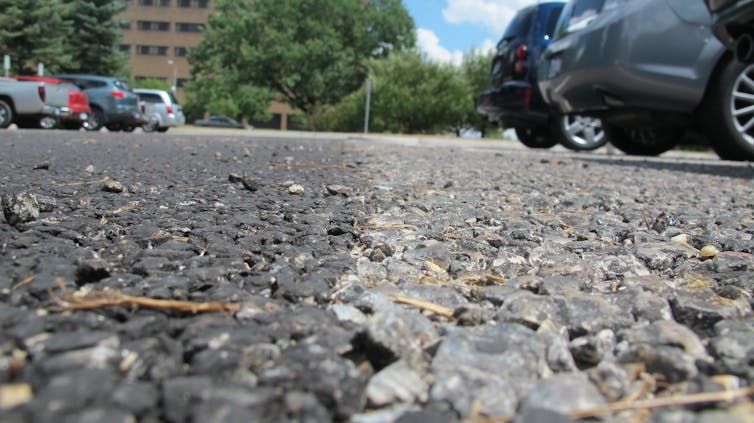

Pervious pavement allows rainwater to make it into the ground where it falls. MSU Infrastructure Planning and Facilities Facility Information Services, CC BY-NC

Permeable pavements allow stormwater to infiltrate slowly into the ground. These pavements can be used for low traffic roadways and driveways, parking lots and pedestrian walkways. There are many different kinds of permeable pavements: Some of the most commercially successful systems include permeable interlocking pavers, grass pavers, pervious concrete and porous asphalt.

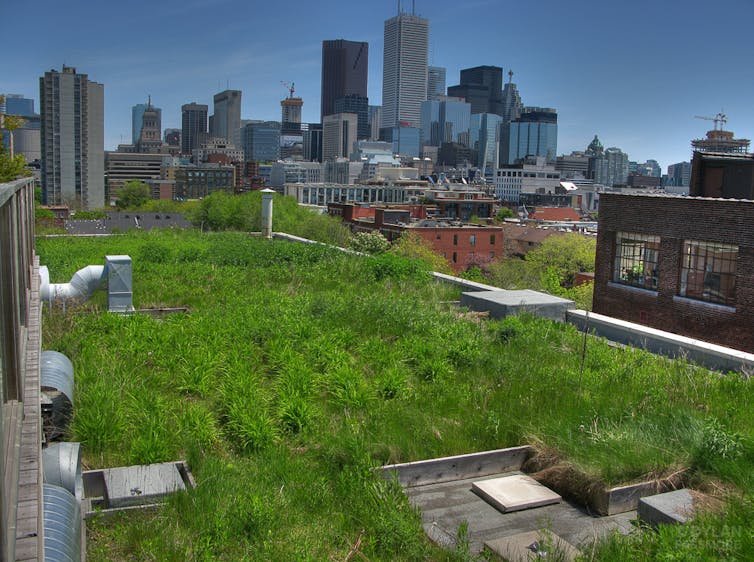

A green roof in Toronto absorbs rainwater before it becomes runoff. Dylan Passmore, CC BY-NC

Increasingly, municipal and regional legislators are introducing LID and green infrastructure into new public policy. In 2009 Toronto implemented a green roof bylaw requiring green roof construction on new and redevelopment projects. New York City’s green infrastructure program aims to reduce the frequency with which the city’s sewer system releases combined stormwater and sewage into downstream waterways. And, in water-limited cities, such as Canberra, Australia, neighborhood-level LID systems are harvesting and recycling stormwater.

Treatment all along the line

In North America, urban communities built before 1980 often were not designed with any neighborhood stormwater management. Since 1980, the traditional approach to stormwater management has been an end-of-pipe system. End-of-pipe systems use centralized infrastructure located at the end of a sewer line to provide flood control and pollution management. In North America, the most popular end-of-pipe approach has been stormwater management ponds that provide temporary storage for stormwater and improve water quality through sedimentation. When these systems fail or are overloaded, residents experience flooding, and polluted stormwater is released downstream.

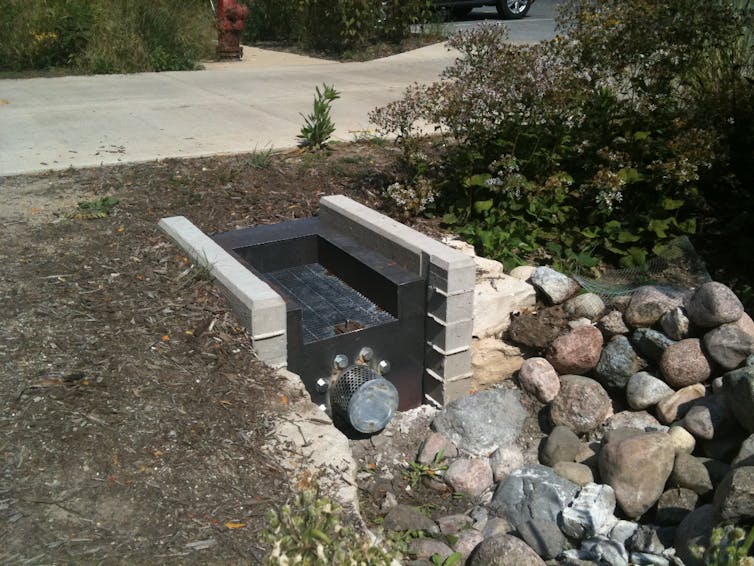

This structure controls the rate of stormwater flow from one bioretention cell to the next cell downstream. Aaron Volkening, CC BY

Conveyance and end-of-pipe infrastructure are also being reimagined to create a complete treatment train; urban stormwater is managed and treated at all points along its path through the urban environment, rather than only at the end of the line. Sewer pipes can be designed to be leaky to support groundwater recharge. Infiltration chambers use buried pipes or cells to hold back stormwater and slowly release it into the ground to support infiltration. Constructed wetlands clean stormwater and remove nutrients like nitrogen.

Parking lot bioswales break up expanses of pavement and allow some rain to sink right into the ground. Green Infrastructure, CC BY

Changing climate demands new stormwater infrastructure

Decentralizing stormwater infrastructure creates the opportunity to build resilience and redundancy into urban planning and design, helping communities better prepare for extreme weather events, such as droughts or deluges. Integrating stormwater management throughout a neighborhood – through the use of green roofs, rainwater harvesting, infiltration systems and so on – in combination with traditional conveyance and end-of-pipe infrastructure, allows communities to simultaneously manage stormwater for both everyday and extreme events.

Urban communities must be designed to live in balance with the local climate and environment, whether quite wet or very dry. To achieve this, developers and city planners need to recognize that some places are not appropriate for human development. For example, the Alberta Floodway Relocation Program, created in response to the extensive destruction caused by Alberta’s 2013 Great Flood, is providing financial support to relocate residents whose homes are within river floodplains or flood fringes.

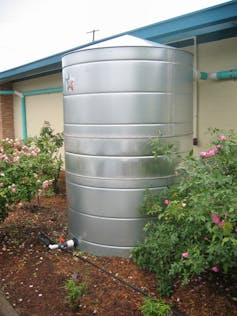

Rain harvesting can be done on many scales. Texas A&M AgriLife Extension Service, CC BY-NC-ND

Cities must implement stormwater practices that are climate-appropriate. In the southwestern US, this is occurring through the proliferation of rainwater-harvesting and water-recycling infrastructure. San Diego’s pure water program is aiming to produce one-third of the city’s drinking water supply locally through water recycling by 2035. Space-limited cities such as Chicago and Toronto are experiencing green roof construction booms, which has reduced runoff. In coastal regions, we see an increase in natural infrastructure including wetlands and sand dunes.

Low Impact Development is about customizing technology to address the unique needs of a city. A well-planned community combines small, medium and large infrastructure. By sustaining naturalized water processes within urban environments, we can reduce the impact of the built environment on our water resources. Ultimately, LID combined with green infrastructure will protect citizens during extreme weather events and support healthy urban rivers and lakes.
